Holdom Station

Hotson Bakker Architects

Vancouver Millennium Line
Vancouver, British Columbia



Project Information:

Holdom Station is an all steel structure. The roof is made of curved steel beams that clear span the station, surmounted by lanterns that provide skylighting down the centre of the station. Columns are round HSS sections.

Architect: Hotson Bakker Architects
Contractor: Dominion Construction
Steel Fabrication and Detailing: Acorn Steel, Vancouver, B.C.
Steel Erection: Acorn Steel, Vancouver, B.C.

Project Images: Construction (images courtesy of George Third & Son)

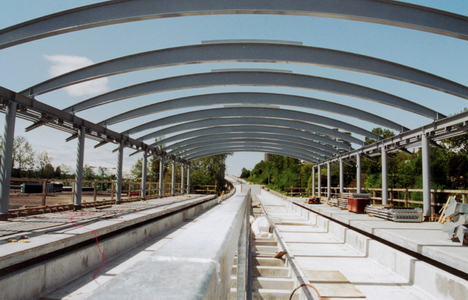

View down centre of track during construction.

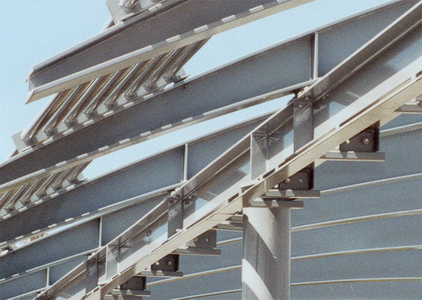

Connection details of roof members to support beam to HSS columns.

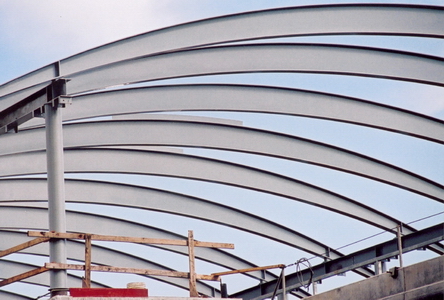

Oblique view of steel roof framing.

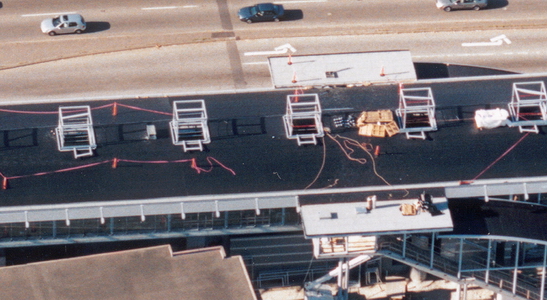

Aerial view of station showing HSS lanterns under construction.

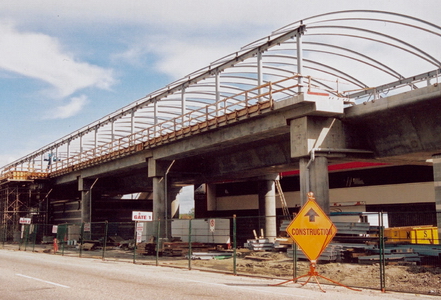

View of overall structure during construction from below.
Exterior view, glazing operations underway.
Project Images: Completed Station

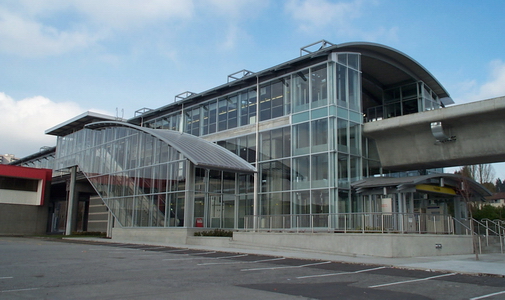

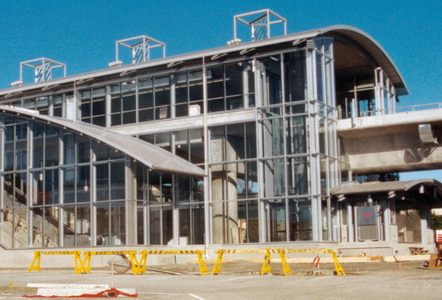

Exterior view of completed station.

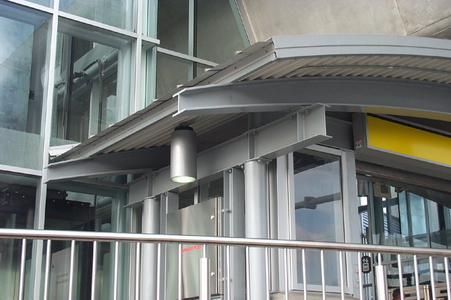

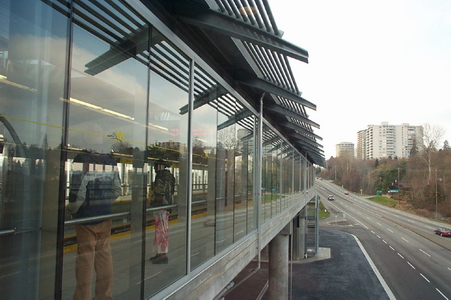

View along outside wall showing roof beam projections that support steel sunshading trellis.

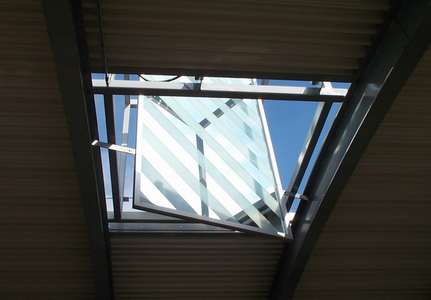

View of mirrored art installation in HSS framed box for lantern.

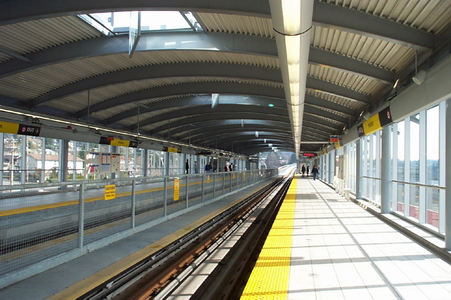

View down platform at side of station.

These images are copyrighted and for educational use only and may not be reproduced commercially without written permission of the Canadian Institute of Steel Construction.
